Airtec Series XL Pneumatic Cylinders

Airtec Series XL pneumatic cylinders are aluminium-profile actuators built for industrial machinery that needs a robust, sensor-ready pneumatic cylinder with adjustable end cushioning and a wide range of operating sizes.

The XL family covers 32 to 125 mm bore and can reach strokes up to 2800 mm, making it suitable for everything from compact machine movements to long-travel automation. Airtec also offers low-temperature, high-temperature, low-friction and metal-scraper versions, so Series XL can be selected around the actual machine environment rather than treated as one generic profile pneumatic cylinder.

Browse the wider Airtec pneumatic cylinder range or compare XL against other ISO 15552 pneumatic cylinders available from Cylinder Warehouse.

What Makes Airtec XL Different?

Series XL combines a standard industrial profile format with features aimed at machine builders and maintenance teams. The aluminium profile includes dedicated grooves for magnetic proximity sensors, helping keep position detection close to the pneumatic cylinder body without bulky external brackets.

Adjustable pneumatic cushioning allows end-of-stroke deceleration to be tuned to the attached load, while specialist versions extend the range into colder, hotter and dirtier operating environments.

Airtec XL Technical Data

Manufacturer	AIRTEC Pneumatic GmbH
Series	XL
Product Category	Profile pneumatic cylinders
Standard	ISO 15552
Bore Sizes	32, 40, 50, 63, 80, 100 and 125 mm
Maximum Stroke	2800 mm
Operation	Double acting
Position Detection	Magnetic piston with integrated sensor grooves
Cushioning	Adjustable pneumatic cushioning
Standard Temperature Range	-20°C to +80°C
Low-Temperature Version	-40°C to +80°C
High-Temperature Version	-10°C to +150°C
Special Versions	Low friction, metal scraper and ATEX options

Choose the XL Bore for the Required Machine Force

Bore	Connection	Piston Rod Thread	Extension Force at 6 bar
32 mm	G1/8	M10 × 1.25	434 N
40 mm	G1/4	M12 × 1.25	678 N
50 mm	G1/4	M16 × 1.5	1060 N
63 mm	G3/8	M16 × 1.5	1682 N
80 mm	G3/8	M20 × 1.5	2713 N
100 mm	G1/2	M20 × 1.5	4239 N
125 mm	G1/2	M27 × 2	6623 N

Designed for Sensor-Based Automation

The XL aluminium profile contains dedicated sensor grooves for magnetic cylinder switches. This makes Series XL particularly useful on automated machinery where extension and retraction positions need to be confirmed as part of the control sequence.

For buyers working across several brands, Cylinder Warehouse also groups compatible-format products inside the wider ISO 15552 pneumatic cylinder collection.

Long-Stroke Pneumatic Cylinder Applications

With strokes available up to 2800 mm, XL is suitable for machine functions well beyond short clamping or locating movements. Longer configurations can be used for transfer systems, guards, slides, handling equipment and other applications where substantial linear travel is required.

On longer strokes, piston-rod buckling, mounting rigidity, airflow and cushioning energy become increasingly important. The pneumatic cylinder should therefore be selected as part of the complete machine system rather than from bore and stroke alone.

Specialist XL Versions

Airtec extends the XL platform with dedicated variants for more demanding operating conditions. Low-temperature versions are rated down to -40°C, while high-temperature versions reach +150°C. Low-friction versions are also available for applications requiring smoother movement, and metal-scraper versions provide additional piston-rod protection in contaminated environments.

This is an important replacement consideration: an existing specialist XL pneumatic cylinder should not automatically be replaced with the standard version just because the physical dimensions appear similar.

Replacing an Existing Airtec XL Pneumatic Cylinder

For maintenance work, start with the complete Airtec part number from the existing pneumatic cylinder. Check the operating version, bore, stroke, port size, piston-rod thread, temperature requirement and any scraper or low-friction option before ordering.

If the original series is unclear, browse all Airtec pneumatic cylinders or return to the main Airtec pneumatic cylinder hub to compare cylinder ranges.

Before Ordering Airtec XL

Is XL intended only for standard factory temperatures?

No. Airtec offers dedicated low-temperature and high-temperature XL versions, so the operating environment should be checked before ordering a replacement.

Can XL be used on long-travel machinery?

Yes. Airtec specifies strokes up to 2800 mm. Longer strokes require additional consideration of rod stability, load, mounting and airflow.

Why does the aluminium profile matter?

The profile provides the main cylinder structure and also incorporates grooves for magnetic sensors, helping simplify position detection and installation on automated machinery.

Should I replace an XL metal-scraper version with standard XL?

Not automatically. The scraper version is intended for a different operating environment, so the original specification should be retained unless the machine conditions have been reassessed.

Request Quote

309 pneumatic cylinder products in this range.

Airtec
XL100/1200
100mm bore x 1200mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL100/1200

£574.47 EX VAT

£689.36 INC VAT

View Details
Airtec
XL100/40
100mm bore x 40mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL100/40

£228.38 EX VAT

£274.05 INC VAT

View Details
Airtec
XL125/100
125mm bore x 100mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL125/100

£361.39 EX VAT

£433.67 INC VAT

View Details
Airtec
XL125/1000
125mm bore x 1000mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL125/1000

£756.85 EX VAT

£908.22 INC VAT

View Details
Airtec
XL125/125
125mm bore x 125mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL125/125

£366.84 EX VAT

£440.21 INC VAT

View Details
Airtec
XL125/150
125mm bore x 150mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL125/150

£372.29 EX VAT

£446.75 INC VAT

View Details
Airtec
XL125/160
125mm bore x 160mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL125/160

£374.47 EX VAT

£449.36 INC VAT

View Details
Airtec

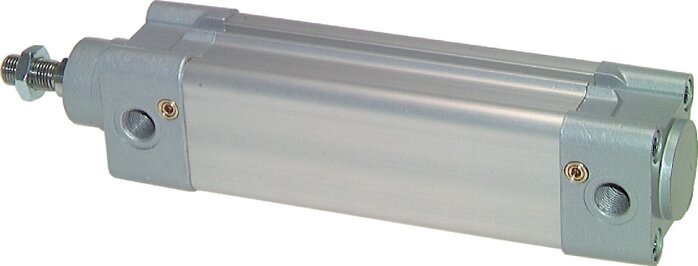

XL125/200
125mm bore x 200mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL125/200

£383.22 EX VAT

£459.86 INC VAT

View Details
Airtec
XL125/25
125mm bore x 25mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL125/25

£345.04 EX VAT

£414.05 INC VAT

View Details
Airtec
XL125/300
125mm bore x 300mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL125/300

£502.94 EX VAT

£603.53 INC VAT

View Details
Airtec
XL125/320
125mm bore x 320mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL125/320

£409.38 EX VAT

£491.25 INC VAT

View Details
Airtec
XL125/40
125mm bore x 40mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL125/40

£348.30 EX VAT

£417.96 INC VAT

View Details
Airtec
XL125/50
125mm bore x 50mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL125/50

£350.49 EX VAT

£420.59 INC VAT

View Details
Airtec
XL125/600
125mm bore x 600mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL125/600

£632.15 EX VAT

£758.58 INC VAT

View Details
Airtec
XL125/700
125mm bore x 700mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL125/700

£663.32 EX VAT

£795.98 INC VAT

View Details
Airtec
XL125/80
125mm bore x 80mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL125/80

£357.03 EX VAT

£428.43 INC VAT

View Details
Airtec
XL125/800
125mm bore x 800mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL125/800

£694.50 EX VAT

£833.40 INC VAT

View Details
Airtec
XL125/900
125mm bore x 900mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL125/900

£725.68 EX VAT

£870.81 INC VAT

View Details
Airtec
XL32/30
32mm bore x 30mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL32/30

£106.83 EX VAT

£128.19 INC VAT

View Details
Airtec
XL32/300
32mm bore x 300mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL32/300

£125.60 EX VAT

£150.72 INC VAT

View Details
Airtec
XL50/10
50mm bore x 10mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL50/10

£133.70 EX VAT

£160.44 INC VAT

View Details
Airtec
XL50/150
50mm bore x 150mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL50/150

£121.12 EX VAT

£145.34 INC VAT

View Details
Airtec
XL50/60
50mm bore x 60mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL50/60

£139.14 EX VAT

£166.97 INC VAT

View Details
Airtec
XL50/700
50mm bore x 700mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL50/700

£238.22 EX VAT

£285.86 INC VAT

View Details
Airtec
XL63/10
63mm bore x 10mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL63/10

£158.02 EX VAT

£189.62 INC VAT

View Details
Airtec
XL63/60
63mm bore x 60mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL63/60

£164.63 EX VAT

£197.55 INC VAT

View Details
Airtec
XL80/10
80mm bore x 10mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL80/10

£189.78 EX VAT

£227.73 INC VAT

View Details
Airtec
XL80/1000
80mm bore x 1000mm stroke
ISO 15552 | ISO 15552 Pneumatic Cylinder
Manufacturer Part Number XL80/1000

£404.05 EX VAT

£484.86 INC VAT

View Details
