Camozzi Series 32 ISO 21287 Compact Pneumatic Cylinders

Camozzi Series 32 compact pneumatic cylinders bring ISO 21287 standardisation into machinery where installation length is at a premium. Their compact profile allows substantial linear movement to be packaged into a shorter body, making the range particularly attractive for automated equipment, handling systems, assembly stations and machine upgrades where available space is tightly controlled.

The Series 32 family extends well beyond a basic compact pneumatic cylinder. Camozzi offers single-acting and double-acting models, non-rotating versions, auto-cushioned configurations and specialist tandem and multi-position pneumatic cylinders, giving designers and maintenance engineers considerably more choice within the same ISO 21287 platform.

Series 32 Technical Specification

Manufacturer	Camozzi Automation
Series	32
Product Type	Compact pneumatic cylinders
Dimensional Standard	ISO 21287
Bore Sizes	12, 16, 20, 25, 32, 40, 50, 63, 80, 100 and 125 mm
Stroke Range	5 to 500 mm depending on bore size
Operation	Single acting and double acting
Construction	Compact anodised aluminium profile
Piston Rod	Rolled stainless steel AISI 303
Position Detection	Magnetic versions available
Cushioning	Auto-cushioned versions available
Double-Acting Pressure	1 to 10 bar
Single-Acting Pressure	2 to 10 bar
Operating Speed	10 to 700 mm/s without load
Standard Temperature	0°C to 80°C; down to -20°C with dry air
High-Temperature Option	FKM versions available up to 140°C

ISO 21287 Pneumatic Cylinders for Compact Machinery

Series 32 is built around ISO 21287 dimensions, making it particularly suitable where a standardised compact pneumatic cylinder is required without giving up valuable machine space. Camozzi also specifies compatibility with mounting accessories used with ISO 15552 pneumatic cylinders, expanding the mounting possibilities available to machine builders and replacement applications.

This combination of compact body length and recognised dimensional standard makes Series 32 especially useful when designing new automation or replacing a compact pneumatic cylinder where installation envelope and mounting geometry matter as much as force and stroke.

Auto-Cushioned Series 32 Pneumatic Cylinders

Auto-cushioned versions provide a major Series 32 option for applications where piston deceleration needs to be controlled without relying on a conventional manually adjusted cushioning arrangement.

This can simplify commissioning while helping reduce impact as the piston approaches the end of travel, particularly on repetitive machinery where cycle consistency is important.

Non-Rotating Series 32 Pneumatic Cylinders

Series 32 non-rotating pneumatic cylinders are intended for applications where attached tooling or mechanisms must maintain their angular orientation during linear travel.

This is particularly useful for positioning, clamping and handling tasks where uncontrolled piston-rod rotation could affect alignment or repeatability.

Series 32 Tandem Pneumatic Cylinders

Camozzi also offers tandem Series 32 pneumatic cylinders in selected bore sizes. The tandem arrangement can provide up to approximately twice the thrust of a conventional pneumatic cylinder of the same bore while maintaining the compact Series 32 concept.

This provides an alternative where greater output force is required but increasing pneumatic cylinder diameter would create installation problems.

Series 32 Multi-Position Pneumatic Cylinders

Multi-position Series 32 pneumatic cylinders can provide up to three fixed positions from a single compact actuator assembly. This makes them useful for machine functions requiring more than conventional fully extended and fully retracted positions.

Camozzi offers tandem and multi-position Series 32 versions in selected 25, 40, 63 and 100 mm bore sizes.

Series 32 Stroke Capacity

Bore Size	Available Stroke Range
12–16 mm	5–200 mm
20–25 mm	5–300 mm
32–63 mm	5–400 mm
80–125 mm	5–500 mm

Where magnetic position sensors are required, Camozzi specifies a minimum stroke of 10 mm.

Choosing the Correct Series 32 Pneumatic Cylinder

The key purchasing decision is not simply choosing a compact body. Series 32 includes different operating and mechanical configurations, so the application should determine whether a standard, non-rotating, auto-cushioned, tandem or multi-position pneumatic cylinder is required.

High-temperature versions also use different sealing materials and should be selected specifically for elevated-temperature duties rather than treated as a standard Series 32 replacement.

Camozzi Series 32 FAQs

Is Camozzi Series 32 an ISO 21287 pneumatic cylinder?

Yes. Series 32 is designed in accordance with ISO 21287, the international dimensional standard for compact pneumatic cylinders.

Why choose Series 32 instead of a conventional profile pneumatic cylinder?

The principal advantage is reduced installation length. Series 32 delivers linear pneumatic actuation within a substantially more compact body, making it particularly suitable for restricted machine spaces.

Does Series 32 offer automatic cushioning?

Yes. Camozzi offers auto-cushioned Series 32 versions for applications where controlled piston deceleration is required.

Can Series 32 prevent piston-rod rotation?

Yes. Non-rotating Series 32 pneumatic cylinders are available for applications where the orientation of attached tooling needs to be maintained during movement.

Can Series 32 provide additional thrust without using a larger bore?

Selected Series 32 tandem pneumatic cylinders can produce up to approximately twice the thrust of a conventional pneumatic cylinder of the same bore.

Can one Series 32 pneumatic cylinder provide three positions?

Yes. Multi-position Series 32 versions can provide up to three fixed positions from one actuator assembly.

Are high-temperature Series 32 pneumatic cylinders available?

Yes. Camozzi offers FKM-sealed Series 32 configurations suitable for operating temperatures up to 140°C.

Can I order Camozzi Series 32 pneumatic cylinders online?

Yes. Cylinder Warehouse supplies genuine Camozzi Series 32 pneumatic cylinders for replacement, machinery manufacture and industrial automation applications.

Request Quote

594 pneumatic cylinder products in this range.

Camozzi
32R2A100A300
100mm bore x 300mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A100A300

£474.21 EX VAT

£569.05 INC VAT

View Details
Camozzi
32R2A100A200
100mm bore x 200mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A100A200

£397.25 EX VAT

£476.70 INC VAT

View Details
Camozzi
32R2A100A150
100mm bore x 150mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A100A150

£358.79 EX VAT

£430.55 INC VAT

View Details
Camozzi
32R2A100A125
100mm bore x 125mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A100A125

£339.59 EX VAT

£407.51 INC VAT

View Details
Camozzi
32R2A100A100
100mm bore x 100mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A100A100

£320.32 EX VAT

£384.38 INC VAT

View Details
Camozzi
32R2A080A200
80mm bore x 200mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A080A200

£308.12 EX VAT

£369.74 INC VAT

View Details
Camozzi
32R2A100A080
100mm bore x 80mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A100A080

£303.46 EX VAT

£364.15 INC VAT

View Details
Camozzi
32R2A100A060
100mm bore x 60mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A100A060

£288.63 EX VAT

£346.36 INC VAT

View Details
Camozzi
32R2A100A050
100mm bore x 50mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A100A050

£281.90 EX VAT

£338.28 INC VAT

View Details
Camozzi
32R2A100A040
100mm bore x 40mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A100A040

£275.17 EX VAT

£330.20 INC VAT

View Details
Camozzi
32R2A100A030
100mm bore x 30mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A100A030

£268.40 EX VAT

£322.08 INC VAT

View Details
Camozzi
32R2A080A125
80mm bore x 125mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A080A125

£266.71 EX VAT

£320.05 INC VAT

View Details
Camozzi
32R2A100A025
100mm bore x 25mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A100A025

£264.35 EX VAT

£317.22 INC VAT

View Details
Camozzi
32R2A063A250
63mm bore x 250mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A063A250

£261.58 EX VAT

£313.90 INC VAT

View Details
Camozzi
32R2A100A020
100mm bore x 20mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A100A020

£260.97 EX VAT

£313.16 INC VAT

View Details
Camozzi
32R2A100A015
100mm bore x 15mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A100A015

£257.61 EX VAT

£309.13 INC VAT

View Details
Camozzi
32R2A100A010
100mm bore x 10mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A100A010

£254.25 EX VAT

£305.10 INC VAT

View Details
Camozzi
32R2A080A100
80mm bore x 100mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A080A100

£252.88 EX VAT

£303.46 INC VAT

View Details

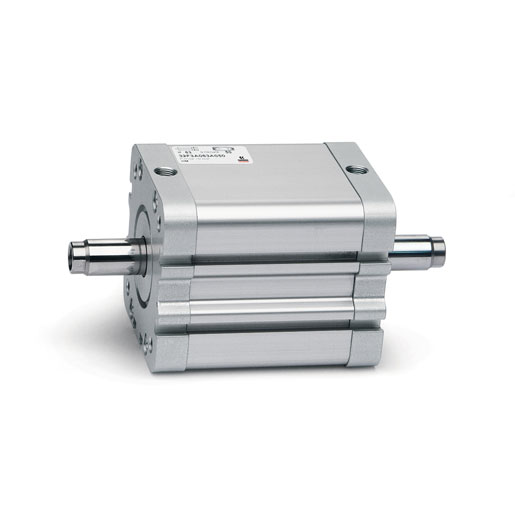

Camozzi
32M3A100A050
100mm bore x 50mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32M3A100A050

£252.29 EX VAT

£302.75 INC VAT

View Details
Camozzi
32R2A080A080
80mm bore x 80mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A080A080

£240.76 EX VAT

£288.91 INC VAT

View Details
Camozzi
32R2A063A200
63mm bore x 200mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A063A200

£240.58 EX VAT

£288.70 INC VAT

View Details
Camozzi
32R2A080A060
80mm bore x 60mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A080A060

£230.66 EX VAT

£276.79 INC VAT

View Details
Camozzi
32M3A100A025
100mm bore x 25mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32M3A100A025

£229.96 EX VAT

£275.95 INC VAT

View Details
Camozzi
32R2A080A050
80mm bore x 50mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A080A050

£225.23 EX VAT

£270.28 INC VAT

View Details
Camozzi
32R2A063A150
63mm bore x 150mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A063A150

£219.60 EX VAT

£263.52 INC VAT

View Details
Camozzi
32R2A080A040
80mm bore x 40mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A080A040

£219.19 EX VAT

£263.03 INC VAT

View Details
Camozzi
32R2A050A300
50mm bore x 300mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A050A300

£218.95 EX VAT

£262.74 INC VAT

View Details
Camozzi
32R2A080A030
80mm bore x 30mm stroke
ISO 21287 | ISO 21287 Compact Pneumatic Cylinder
Manufacturer Part Number 32R2A080A030

£213.75 EX VAT

£256.50 INC VAT

View Details
