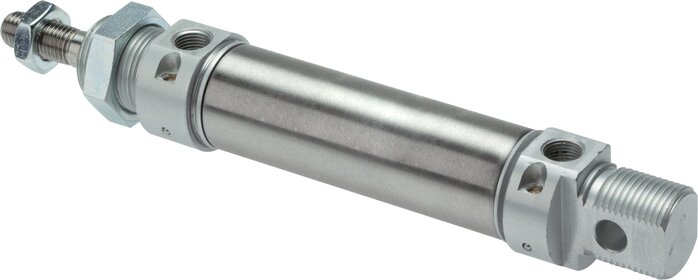

Airtec | ZDPM 20/180 | 20mm Bore x 180mm Stroke | ISO 6432 | Pneumatic Cylinder
- Brand Airtec
- MPNZDPM 20/180
- Category ISO 6432 Pneumatic Cylinder
The Airtec ZDPM 20/180 is a double acting pneumatic cylinder with a 20mm bore and 180mm stroke. This ISO 6432 cylinder is part of Airtec's ZDPM series.
| Manufacturer Part Number | ZDPM 20/180 |
|---|---|
| Brand | Airtec |
| Cylinder Type | ISO 6432 Pneumatic Cylinder |
| Acting Type | Double Acting |
| Standard | ISO 6432 |
| Bore | 20mm |
| Stroke | 180mm |
| Series | ZDPM |
| Port Size | G1/8 |
| Body Material | Anodised aluminium |
| Tube Material | 1.4301 stainless steel |
| Rod Material | 1.4305 stainless steel |
| Seal Material | NBR / PUR |
| GTIN | 4050571813963 |
Product quotation
Request a Quote
This quotation form is for orders of two or more of the selected cylinder. For a single cylinder, use the live website price and add the item directly to your basket. For larger quantities, submit your requirement and we will confirm current pricing, availability, build status and lead time.
Selected part
ZDPM 20/180
Manufacturer
Airtec
Possible cylinder alternatives
These products match the available cylinder standard, bore, stroke and acting-type data. They are displayed in the technical order written by the Cylinder Warehouse alternatives automation.
Standard
ISO 6432
Bore
20mm
Stroke
180mm
Acting
Double Acting
Possible alternative only. Matching is based on the available product data. Confirm mounting dimensions, port size, cushioning, piston-rod thread, magnetic sensing, materials and the complete operating specification before ordering.
