EMC | SES 50/90 | 50mm Bore x 90mm Stroke | Compact | Pneumatic Cylinder
- Brand EMC
- MPNSES 50/90
- Category Compact Pneumatic Cylinder

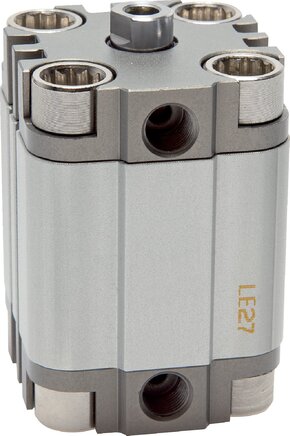

EMC SES 50/90 is a double-acting SES compact pneumatic cylinder, configured with a 50mm bore and 90mm stroke with G1/8 pneumatic ports.
Construction uses painted aluminium body, anodised aluminium tube, hard chrome-plated steel piston rod and NBR seals. The compact body format is suited to machine layouts where installation space is restricted.
| Manufacturer Part Number | SES 50/90 |
|---|---|
| Brand | EMC |
| Cylinder Type | Compact Pneumatic Cylinder |
| Bore | 50mm |
| Stroke | 90mm |
| Series | SES |
| Acting Type | double-acting |
| Port Size | G1/8 |
| Body Material | painted aluminium, cylinder tube: anodized aluminium |
| Tube Material | Anodised aluminium |
| Rod Material | Hard chrome plated steel |
| Seal Material | NBR |
| Version | Standard |
| Weight | 1,2 kg / pcs |
| Gtin | 4050571619572 |
| Customs duty number | 84123100 |
