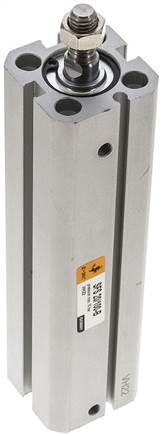

EMC | SFS 20/100-B | 20mm Bore x 100mm Stroke | ISO 21287 | Pneumatic Cylinder
- Brand EMC
- MPNSFS 20/100-B
- Category ISO 21287 Compact Pneumatic Cylinder
EMC SFS 20/100-B is a iso 21287 compact pneumatic cylinder for standardised compact automation, clamping, lifting and machine movement. Use the specification table below to check the bore, stroke, standard and key technical details before ordering or replacing an existing cylinder.
| Manufacturer Part Number | SFS 20/100-B |
|---|---|
| Brand | EMC |
| Cylinder Type | ISO 21287 Compact Pneumatic Cylinder |
| Standard | ISO 21287 |
| Bore | 20mm |
| Stroke | 100mm |
| Series | SFS |
| Acting | Double Acting |
| Port Size | M5 |
| Body Material | aluminium, cylinder tube: anodized aluminium |
| Tube Material | Anodised aluminium |
| Rod Material | Stainless steel |
| Seal Material | NBR / PUR |
| Version | Piston rod with male thread |
| Weight | 420 g / pcs |
| Gtin | 4050571927387 |
| Customs duty number | 84123100 |
| Rohs compliant | Yes |
Product quotation
Request a Quote
This quotation form is for orders of two or more of the selected cylinder. For a single cylinder, use the live website price and add the item directly to your basket. For larger quantities, submit your requirement and we will confirm current pricing, availability, build status and lead time.
Selected part
SFS 20/100-B
Manufacturer
EMC
Possible cylinder alternatives
These products match the available cylinder standard, bore, stroke and acting-type data. They are displayed in the technical order written by the Cylinder Warehouse alternatives automation.
Standard
ISO 21287
Bore
20mm
Stroke
100mm
Acting
Double Acting
Possible alternative only. Matching is based on the available product data. Confirm mounting dimensions, port size, cushioning, piston-rod thread, magnetic sensing, materials and the complete operating specification before ordering.
