EMC | SFS 50/10-B | 50mm Bore x 10mm Stroke | ISO 21287 | Pneumatic Cylinder
- Brand EMC
- MPNSFS 50/10-B
- Category ISO 21287 Compact Pneumatic Cylinder

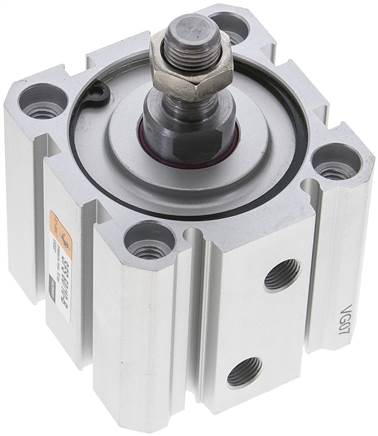

EMC SFS 50/10-B is a double-acting SFS compact pneumatic cylinder built to ISO 21287, configured with a 50mm bore and 10mm stroke with G1/8 pneumatic ports.
Construction uses aluminium body, anodised aluminium tube, stainless steel piston rod and NBR/PUR seals. This version is specified as Piston rod with male thread.
| Manufacturer Part Number | SFS 50/10-B |
|---|---|
| Brand | EMC |
| Cylinder Type | ISO 21287 Compact Pneumatic Cylinder |
| Standard | ISO 21287 |
| Bore | 50mm |
| Stroke | 10mm |
| Series | SFS |
| Acting Type | double-acting |
| Port Size | G1/8 |
| Body Material | Aluminium |
| Tube Material | Anodised aluminium |
| Rod Material | Stainless steel |
| Seal Material | NBR/PUR |
| Version | Piston rod with male thread |
| Weight | 600 g / pcs |
| Gtin | 4050571928513 |
| Customs duty number | 84123100 |
| Rohs compliant | Yes |
Product quotation
Request a Quote
This quotation form is for orders of two or more of the selected cylinder. For a single cylinder, use the live website price and add the item directly to your basket. For larger quantities, submit your requirement and we will confirm current pricing, availability, build status and lead time.
Selected part
SFS 50/10-B
Manufacturer
EMC
Possible cylinder alternatives
These products match the available cylinder standard, bore, stroke and acting-type data. They are displayed in the technical order written by the Cylinder Warehouse alternatives automation.
Standard
ISO 21287
Bore
50mm
Stroke
10mm
Acting
Double Acting
Possible alternative only. Matching is based on the available product data. Confirm mounting dimensions, port size, cushioning, piston-rod thread, magnetic sensing, materials and the complete operating specification before ordering.
