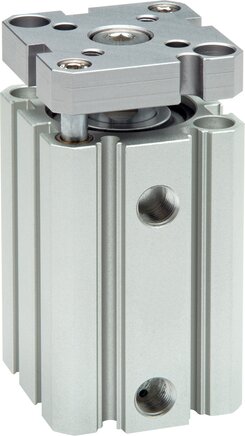

EMC | SFSA 40/40 | 40mm Bore x 40mm Stroke | ISO 21287 | Pneumatic Cylinder
- Brand EMC
- MPNSFSA 40/40
- Category ISO 21287 Compact Pneumatic Cylinder
EMC SFSA 40/40 is a double-acting SFSA compact pneumatic cylinder built to ISO 21287, configured with a 40mm bore and 40mm stroke with G1/8 pneumatic ports.
Construction uses aluminium body, anodised aluminium tube, stainless steel piston rod and NBR/PUR seals. The SFSA configuration uses a non-rotating piston rod while retaining the compact ISO 21287 format.
| Manufacturer Part Number | SFSA 40/40 |
|---|---|
| Brand | EMC |
| Cylinder Type | ISO 21287 Compact Pneumatic Cylinder |
| Standard | ISO 21287 |
| Bore | 40mm |
| Stroke | 40mm |
| Series | SFSA |
| Acting Type | double-acting |
| Port Size | G1/8 |
| Body Material | Aluminium |
| Tube Material | Anodised aluminium |
| Rod Material | Stainless steel |
| Seal Material | NBR/PUR |
| Version | non-rotating piston rod |
| Weight | 650 g / pcs |
| Gtin | 4050571932176 |
| Customs duty number | 84123100 |
| Rohs compliant | Yes |
Product quotation
Request a Quote
This quotation form is for orders of two or more of the selected cylinder. For a single cylinder, use the live website price and add the item directly to your basket. For larger quantities, submit your requirement and we will confirm current pricing, availability, build status and lead time.
Selected part
SFSA 40/40
Manufacturer
EMC
Possible cylinder alternatives
These products match the available cylinder standard, bore, stroke and acting-type data. They are displayed in the technical order written by the Cylinder Warehouse alternatives automation.
Standard
ISO 21287
Bore
40mm
Stroke
40mm
Acting
Double Acting
Possible alternative only. Matching is based on the available product data. Confirm mounting dimensions, port size, cushioning, piston-rod thread, magnetic sensing, materials and the complete operating specification before ordering.
