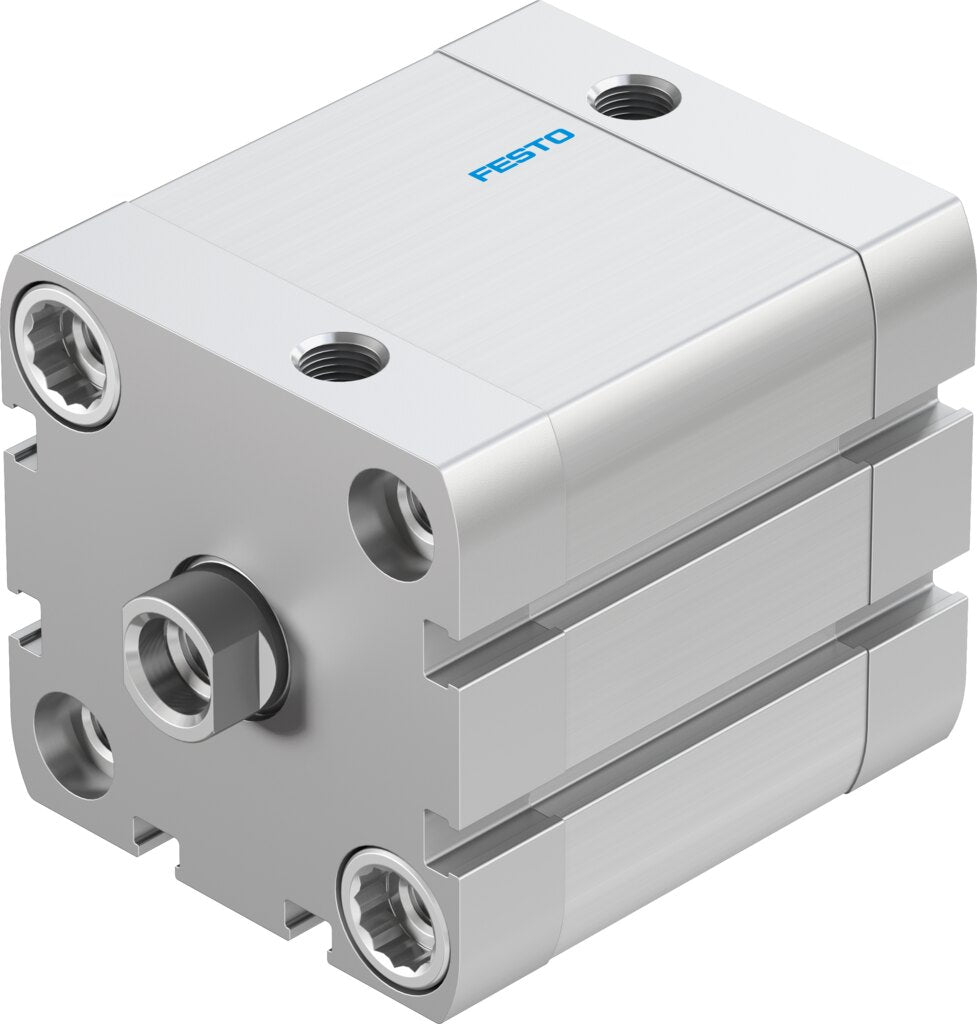

Festo | ADN-50-35-I-P-A | 50mm Bore x 35mm Stroke | ISO 21287 | Compact Pneumatic Cylinder
- Brand Festo
- MPNADN-50-35-I-P-A
- Category ISO 21287 Compact Pneumatic Cylinder
The Festo ADN-50-35-I-P-A is a double-acting ISO 21287 Compact pneumatic cylinder with a 50mm bore and 35mm stroke. It is part of Festo’s ADN series and conforms to ISO 21287.
Construction uses coated die-cast aluminium body, smooth-anodised wrought aluminium alloy cylinder tube, high-alloy steel piston rod and TPE-U(PUR) seals. The specification also includes a M10 thread.
The compact format is well suited to machinery where axial installation space is restricted while retaining a practical pneumatic linear-motion package.
| Manufacturer Part Number | ADN-50-35-I-P-A |
|---|---|
| Brand | Festo |
| Cylinder Type | ISO 21287 Compact Pneumatic Cylinder |
| Acting Type | Double Acting |
| Standard | ISO 21287 |
| Bore | 50mm |
| Stroke | 35mm |
| Series | ADN |
| Thread Size | M10 |
| Body Material | Coated die-cast aluminium |
| Tube Material | Smooth-anodised wrought aluminium alloy |
| Rod Material | High-alloy steel |
| Seal Material | TPE-U(PUR) |
| Weight | 669 g / pcs |
| GTIN | 4052568621391 |
| Data Sheet | View manufacturer data sheet |
Product quotation
Request a Quote
This quotation form is for orders of two or more of the selected cylinder. For a single cylinder, use the live website price and add the item directly to your basket. For larger quantities, submit your requirement and we will confirm current pricing, availability, build status and lead time.
