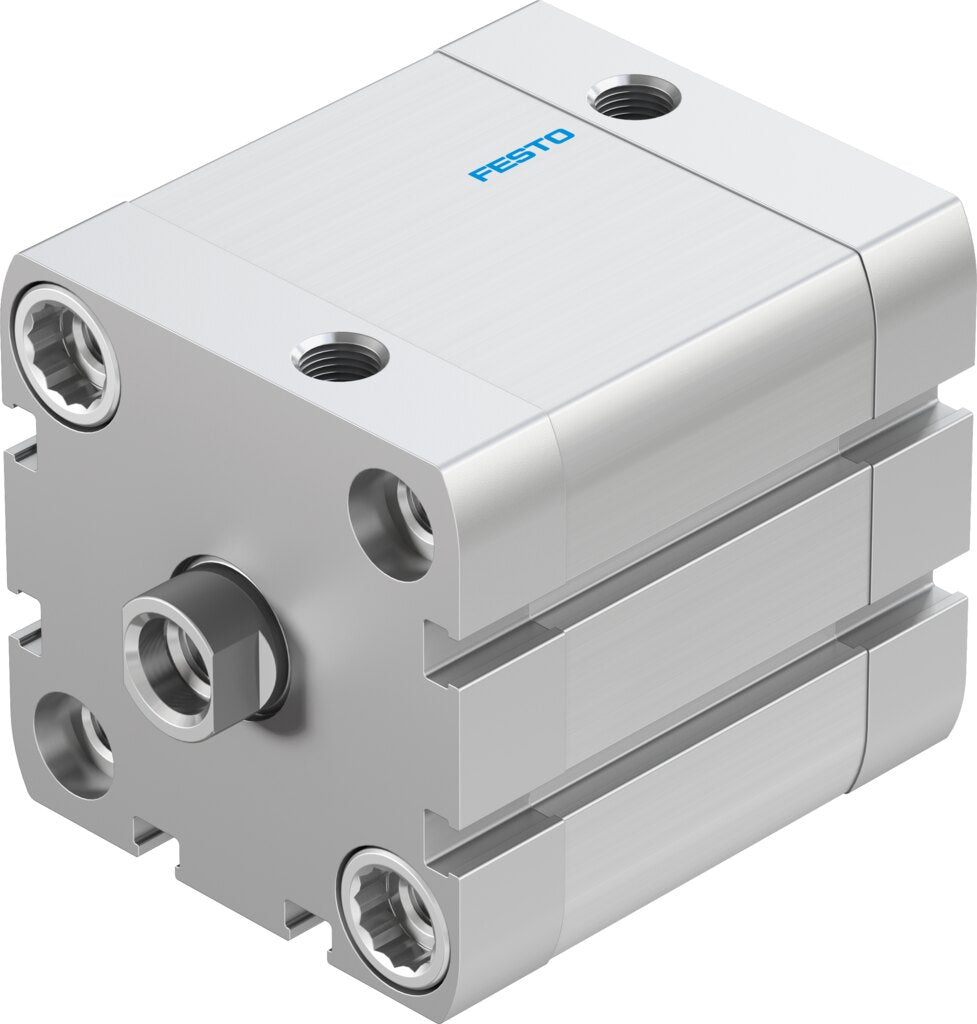

Festo | ADN-50-35-I-PPS-A | 50mm Bore x 35mm Stroke | ISO 21287 | Compact Pneumatic Cylinder
- Brand Festo
- MPNADN-50-35-I-PPS-A
- Category ISO 21287 Compact Pneumatic Cylinder
The Festo ADN-50-35-I-PPS-A is a double-acting ISO 21287 Compact pneumatic cylinder with a 50mm bore and 35mm stroke. It is part of Festo’s ADN series and conforms to ISO 21287.
Construction uses coated die-cast aluminium body, smooth-anodised wrought aluminium alloy cylinder tube, high-alloy steel piston rod and TPE-U(PUR) seals. The specification also includes a M10 thread.
The compact format is well suited to machinery where axial installation space is restricted while retaining a practical pneumatic linear-motion package.
| Manufacturer Part Number | ADN-50-35-I-PPS-A |
|---|---|
| Brand | Festo |
| Cylinder Type | ISO 21287 Compact Pneumatic Cylinder |
| Acting Type | Double Acting |
| Standard | ISO 21287 |
| Bore | 50mm |
| Stroke | 35mm |
| Series | ADN |
| Thread Size | M10 |
| Body Material | Coated die-cast aluminium |
| Tube Material | Smooth-anodised wrought aluminium alloy |
| Rod Material | High-alloy steel |
| Seal Material | TPE-U(PUR) |
| Weight | 685 g / pcs |
| GTIN | 4052568621407 |
| Data Sheet | View manufacturer data sheet |
