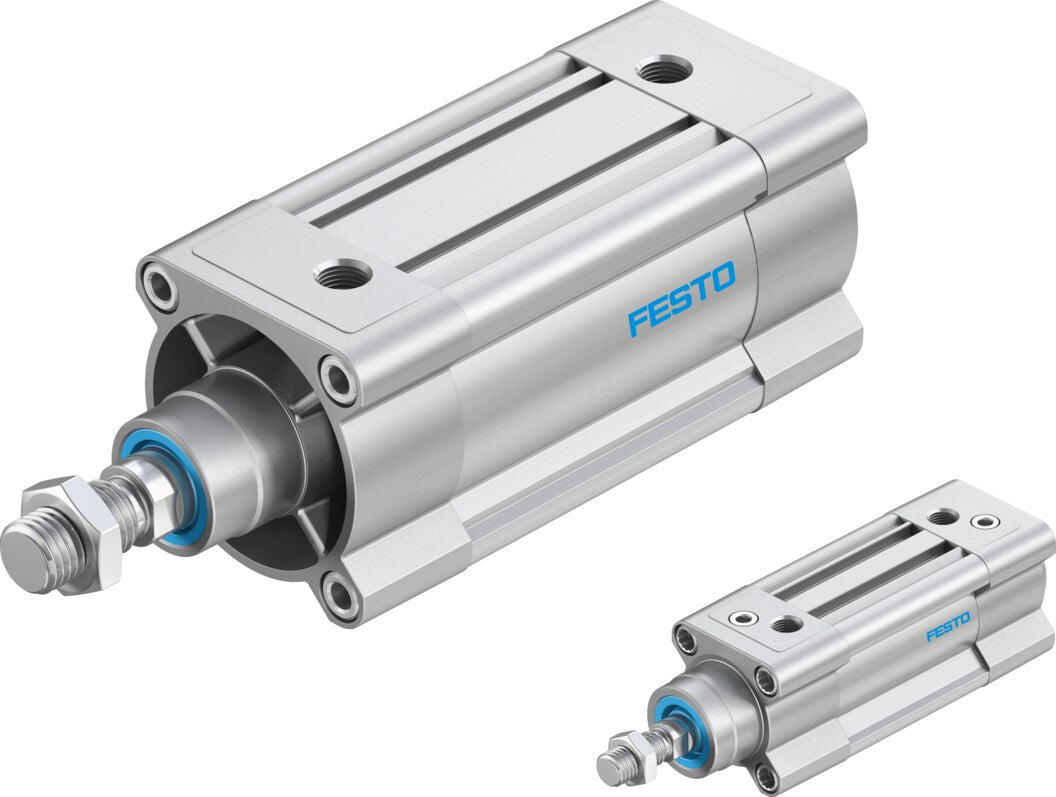

Festo | DSBC-63-90-C-PPVA | 63mm Bore x 90mm Stroke | ISO 15552 | Pneumatic Cylinder
- Brand Festo
- MPNDSBC-63-90-C-PPVA
- Category ISO 15552 Pneumatic Cylinder
The Festo DSBC-63-90-C-PPVA is a double-acting ISO 15552 pneumatic cylinder with a 63mm bore and 90mm stroke. It is part of Festo’s DSBC series and conforms to ISO 15552.
Construction uses coated die-cast aluminium body, smooth-anodised wrought aluminium alloy cylinder tube, high-alloy steel piston rod and TPE-U(PU) seals. The specification also includes a M16x1.5 / M10 thread.
The ISO 15552 profile format is suited to standardised industrial automation and replacement applications where established mounting dimensions are important.
| Manufacturer Part Number | DSBC-63-90-C-PPVA |
|---|---|
| Brand | Festo |
| Cylinder Type | ISO 15552 Pneumatic Cylinder |
| Acting Type | Double Acting |
| Standard | ISO 15552 |
| Bore | 63mm |
| Stroke | 90mm |
| Series | DSBC |
| Thread Size | M16x1.5 / M10 |
| Body Material | Coated die-cast aluminium |
| Tube Material | Smooth-anodised wrought aluminium alloy |
| Rod Material | High-alloy steel |
| Seal Material | TPE-U(PU) |
| Data Sheet | View manufacturer data sheet |
Product quotation
Request a Quote
This quotation form is for orders of two or more of the selected cylinder. For a single cylinder, use the live website price and add the item directly to your basket. For larger quantities, submit your requirement and we will confirm current pricing, availability, build status and lead time.
