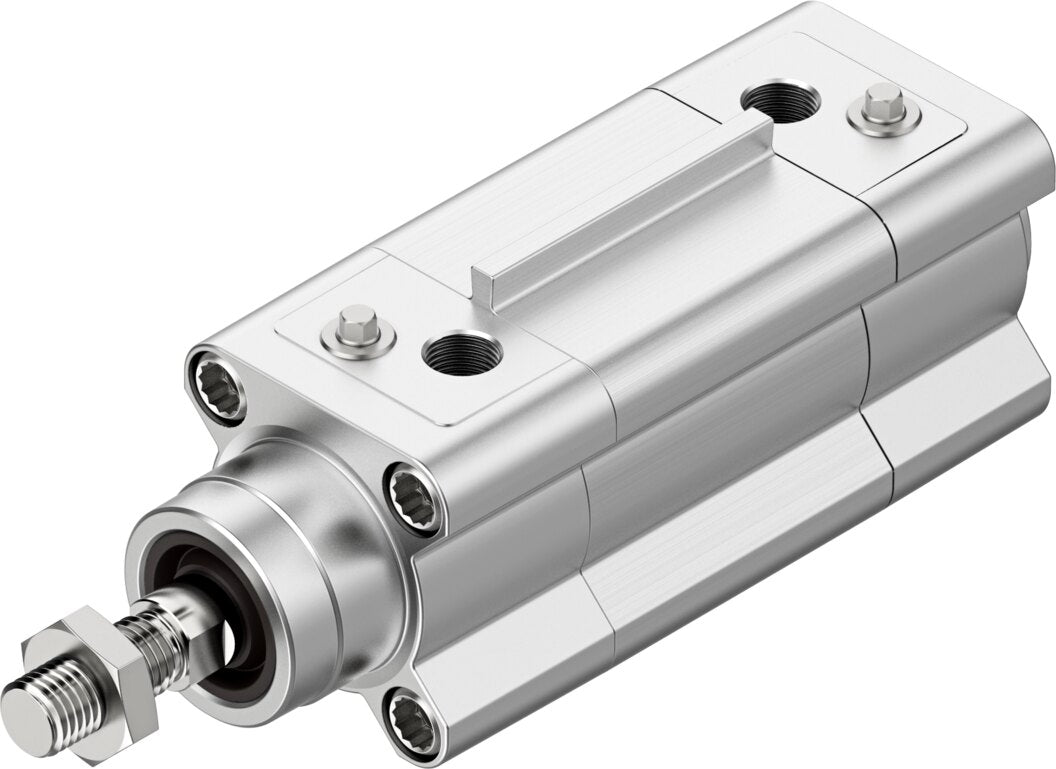

Festo | DSBF-C-50-600-PPVA-N3A3-R | 50mm Bore x 600mm Stroke | ISO 15552 | Pneumatic Cylinder
- Brand Festo
- MPNDSBF-C-50-600-PPVA-N3A3-R
- Category ISO 15552 Pneumatic Cylinder
The Festo DSBF-C-50-600-PPVA-N3A3-R is a double-acting ISO 15552 pneumatic cylinder with a 50mm bore and 600mm stroke. It is part of Festo’s DSBF series and conforms to ISO 15552.
Construction uses coated die-cast aluminium body, wrought aluminium alloy cylinder tube, high-alloy stainless steel piston rod and TPE-U(PU) seals. The specification also includes a M16x1.5 / M10 thread.
The ISO 15552 profile format is suited to standardised industrial automation and replacement applications where established mounting dimensions are important.
| Manufacturer Part Number | DSBF-C-50-600-PPVA-N3A3-R |
|---|---|
| Brand | Festo |
| Cylinder Type | ISO 15552 Pneumatic Cylinder |
| Acting Type | Double Acting |
| Standard | ISO 15552 |
| Bore | 50mm |
| Stroke | 600mm |
| Series | DSBF |
| Thread Size | M16x1.5 / M10 |
| Body Material | Coated die-cast aluminium |
| Tube Material | Wrought aluminium alloy |
| Rod Material | High-alloy stainless steel |
| Seal Material | TPE-U(PU) |
| Data Sheet | View manufacturer data sheet |
