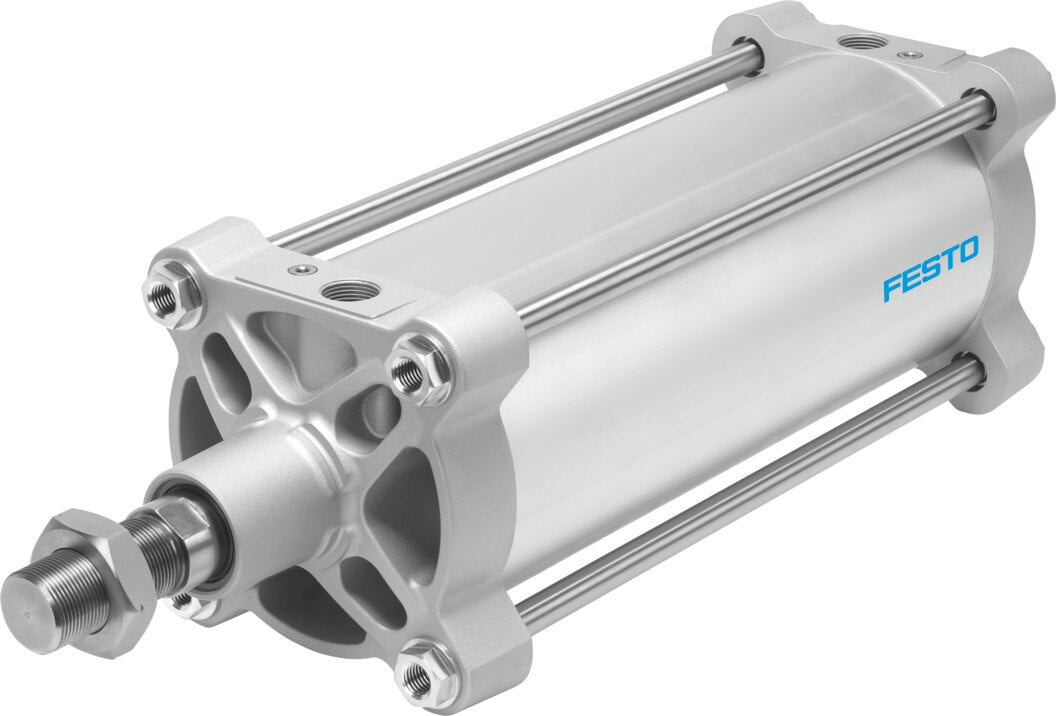

Festo | DSBG-160-630-PPVA-N3 | 160mm Bore x 630mm Stroke | ISO 15552 | Pneumatic Cylinder
- Brand Festo
- MPNDSBG-160-630-PPVA-N3
- Category ISO 15552 Pneumatic Cylinder
The Festo DSBG-160-630-PPVA-N3 is a double-acting ISO 15552 pneumatic cylinder with a 160mm bore and 630mm stroke. It is part of Festo’s DSBG series and conforms to ISO 15552.
Construction uses coated die-cast aluminium body, smooth-anodised wrought aluminium alloy cylinder tube, high-alloy stainless steel piston rod and TPE-U(PU) seals. The specification also includes a M36x2 thread.
The ISO 15552 profile format is suited to standardised industrial automation and replacement applications where established mounting dimensions are important.
| Manufacturer Part Number | DSBG-160-630-PPVA-N3 |
|---|---|
| Brand | Festo |
| Cylinder Type | ISO 15552 Pneumatic Cylinder |
| Acting Type | Double Acting |
| Standard | ISO 15552 |
| Bore | 160mm |
| Stroke | 630mm |
| Series | DSBG |
| Thread Size | M36x2 |
| Body Material | Coated die-cast aluminium |
| Tube Material | Smooth-anodised wrought aluminium alloy |
| Rod Material | High-alloy stainless steel |
| Seal Material | TPE-U(PU) |
| Data Sheet | View manufacturer data sheet |
