EMC | SGM 20/125 | 20mm Bore x 125mm Stroke | Guided | Pneumatic Cylinder
- Brand EMC
- MPNSGM 20/125
- Category Guided Pneumatic Cylinder

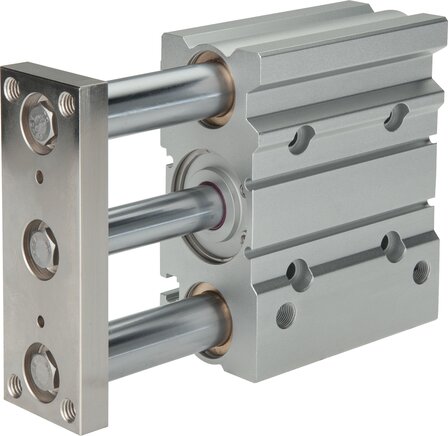

EMC SGM 20/125 is a double-acting SGM guided pneumatic cylinder, configured with a 20mm bore and 125mm stroke with G1/8 pneumatic ports.
Construction uses anodised aluminium body, hard chrome-plated steel piston rod and NBR/PUR seals. The guided assembly uses a slide bearing to support stable linear movement and resist unwanted rotation.
| Manufacturer Part Number | SGM 20/125 |
|---|---|
| Brand | EMC |
| Cylinder Type | Guided Pneumatic Cylinder |
| Bore | 20mm |
| Stroke | 125mm |
| Series | SGM |
| Acting Type | double-acting |
| Port Size | G1/8 |
| Body Material | Anodised aluminium |
| Rod Material | Hard chrome plated steel |
| Seal Material | NBR/PUR |
| Version | with slide bearing |
| Weight | 1,6 kg / pcs |
| Gtin | 4050571873493 |
| Customs duty number | 84123100 |
| Rohs compliant | Yes |
Product quotation
Request a Quote
This quotation form is for orders of two or more of the selected cylinder. For a single cylinder, use the live website price and add the item directly to your basket. For larger quantities, submit your requirement and we will confirm current pricing, availability, build status and lead time.
Selected part
SGM 20/125
Manufacturer
EMC
