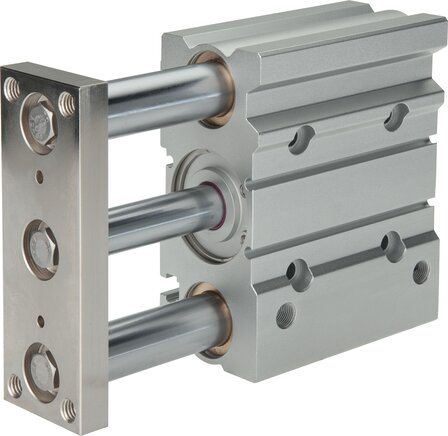

EMC | SGM 25/125 | 25mm Bore x 125mm Stroke | Guided | Pneumatic Cylinder
- Brand EMC
- MPNSGM 25/125
- Category Guided Pneumatic Cylinder
EMC SGM 25/125 is a double-acting SGM guided pneumatic cylinder, configured with a 25mm bore and 125mm stroke with G1/8 pneumatic ports.
Construction uses anodised aluminium body, hard chrome-plated steel piston rod and NBR/PUR seals. The guided assembly uses a slide bearing to support stable linear movement and resist unwanted rotation.
| Manufacturer Part Number | SGM 25/125 |
|---|---|
| Brand | EMC |
| Cylinder Type | Guided Pneumatic Cylinder |
| Bore | 25mm |
| Stroke | 125mm |
| Series | SGM |
| Acting Type | double-acting |
| Port Size | G1/8 |
| Body Material | Anodised aluminium |
| Rod Material | Hard chrome plated steel |
| Seal Material | NBR/PUR |
| Version | with slide bearing |
| Weight | 2.3 kg / pcs |
| Gtin | 4050571873608 |
| Customs duty number | 84123100 |
| Rohs compliant | Yes |
