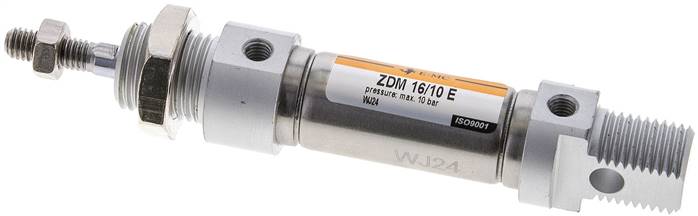

EMC | ZDM 16/10 E | 16mm Bore x 10mm Stroke | ISO 6432 | Pneumatic Cylinder
- Brand EMC
- MPNZDM 16/10 E
- Category ISO 6432 Pneumatic Cylinder
EMC ZDM 16/10 E is a double-acting ZDM pneumatic cylinder built to ISO 6432, configured with a 16mm bore and 10mm stroke with M5 pneumatic ports.
Construction uses anodised aluminium body, 1.4301 tube, 1.4305 piston rod and NBR seals. The ISO 6432 round-body format is suited to compact automation and replacement applications.
| Manufacturer Part Number | ZDM 16/10 E |
|---|---|
| Brand | EMC |
| Cylinder Type | ISO 6432 Pneumatic Cylinder |
| Standard | ISO 6432 |
| Bore | 16mm |
| Stroke | 10mm |
| Series | ZDM |
| Acting Type | double-acting |
| Port Size | M5 |
| Body Material | Anodised aluminium |
| Tube Material | 1.4301 |
| Rod Material | 1.4305 |
| Seal Material | NBR |
| Version | Standard |
| Weight | 105 g / pcs |
| Gtin | 4050571930455 |
| Customs duty number | 84123100 |
| Rohs compliant | Yes |
