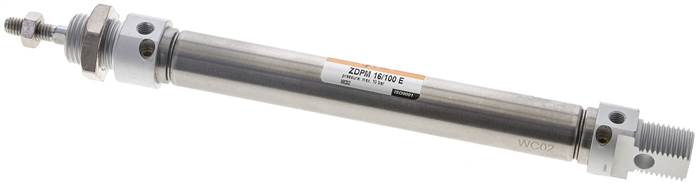

EMC | ZDPM 16/100 E | 16mm Bore x 100mm Stroke | ISO 6432 | Pneumatic Cylinder
- Brand EMC
- MPNZDPM 16/100 E
- Category ISO 6432 Pneumatic Cylinder
EMC ZDPM 16/100 E is a iso 6432 pneumatic cylinder for compact automation, light-duty linear movement and replacement applications. Use the specification table below to check the bore, stroke, standard and key technical details before ordering or replacing an existing cylinder.
| Manufacturer Part Number | ZDPM 16/100 E |
|---|---|
| Brand | EMC |
| Cylinder Type | ISO 6432 Pneumatic Cylinder |
| Standard | ISO 6432 |
| Bore | 16mm |
| Stroke | 100mm |
| Series | ZDPM |
| Acting | Double Acting |
| Port Size | M5 |
| Body Material | Anodised aluminium |
| Tube Material | 1.4301 |
| Rod Material | 1.4305 |
| Seal Material | NBR |
| Version | adjustable end position damping |
| Weight | 160 g / pcs |
| Gtin | 4050571930769 |
| Customs duty number | 84123100 |
| Rohs compliant | Yes |
Product quotation
Request a Quote
This quotation form is for orders of two or more of the selected cylinder. For a single cylinder, use the live website price and add the item directly to your basket. For larger quantities, submit your requirement and we will confirm current pricing, availability, build status and lead time.
Selected part
ZDPM 16/100 E
Manufacturer
EMC

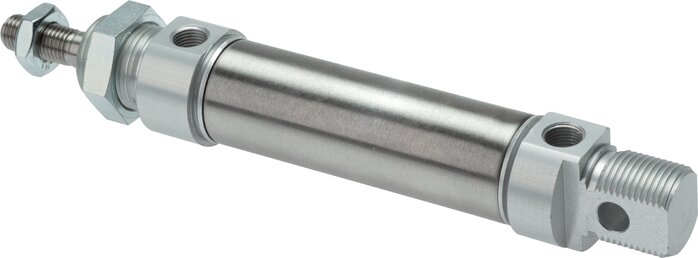

Possible cylinder alternatives
These products match the available cylinder standard, bore, stroke and acting-type data. They are displayed in the technical order written by the Cylinder Warehouse alternatives automation.
Standard
ISO 6432
Bore
16mm
Stroke
100mm
Acting
Double Acting
Possible alternative only. Matching is based on the available product data. Confirm mounting dimensions, port size, cushioning, piston-rod thread, magnetic sensing, materials and the complete operating specification before ordering.
