Collection: Guided Pneumatic Cylinders

Guided pneumatic cylinders combine pneumatic movement with an integrated guide mechanism to support the load and control alignment. Unlike a standard unsupported piston rod, the guided arrangement is designed to resist rotation and manage certain side-load or moment conditions.

Guided cylinders and compact slide units are commonly used in pick-and-place systems, transfer equipment, assembly machinery, handling systems, fixtures, jigs and repetitive positioning applications. They can be used for lifting, lowering, pushing, stopping, locating and transferring components.

Selection depends on more than bore and stroke. Check the guide type, allowable load, moment capacity, mounting orientation, platform dimensions, port size and complete dimensional specification before replacing a guided actuator.

Request Quote

380 pneumatic cylinder products in this range.

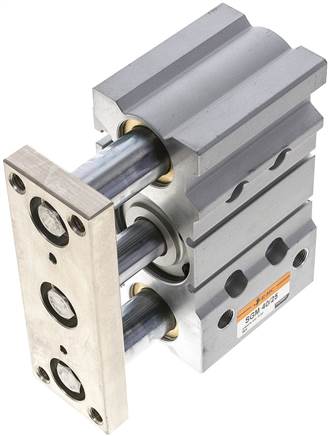

EMC
SGM 40/25
40mm bore x 25mm stroke
Guided Pneumatic Cylinder
Manufacturer Part Number SGM 40/25

£217.70 EX VAT

View Details
EMC
SGM 40/150
40mm bore x 150mm stroke
Guided Pneumatic Cylinder
Manufacturer Part Number SGM 40/150

£332.22 EX VAT

View Details
EMC
SGM 40/50
40mm bore x 50mm stroke
Guided Pneumatic Cylinder
Manufacturer Part Number SGM 40/50

£235.92 EX VAT

View Details
EMC
SGM 40/200
40mm bore x 200mm stroke
Guided Pneumatic Cylinder
Manufacturer Part Number SGM 40/200

£365.99 EX VAT

View Details
EMC
SGM 40/100
40mm bore x 100mm stroke
Guided Pneumatic Cylinder
Manufacturer Part Number SGM 40/100

£286.43 EX VAT

View Details
EMC
SGM 20/175
20mm bore x 175mm stroke
Guided Pneumatic Cylinder
Manufacturer Part Number SGM 20/175

£209.09 EX VAT

View Details
EMC
SGM 20/125
20mm bore x 125mm stroke
Guided Pneumatic Cylinder
Manufacturer Part Number SGM 20/125

£176.18 EX VAT

View Details

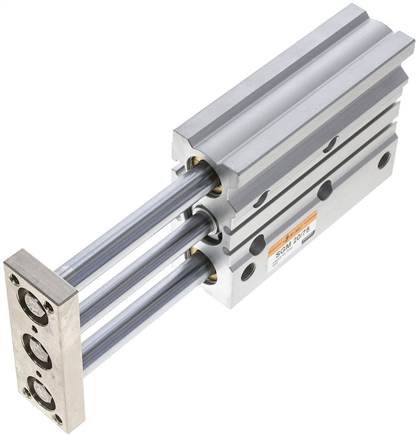

EMC
SGM 20/75
20mm bore x 75mm stroke
Guided Pneumatic Cylinder
Manufacturer Part Number SGM 20/75

£152.87 EX VAT

View Details

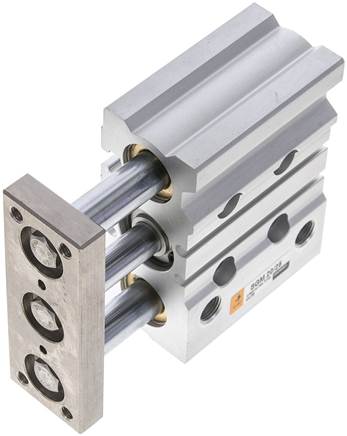

EMC
SGM 20/25
20mm bore x 25mm stroke
Guided Pneumatic Cylinder
Manufacturer Part Number SGM 20/25

£127.47 EX VAT

View Details
EMC
SGM 20/150
20mm bore x 150mm stroke
Guided Pneumatic Cylinder
Manufacturer Part Number SGM 20/150

£191.90 EX VAT

View Details

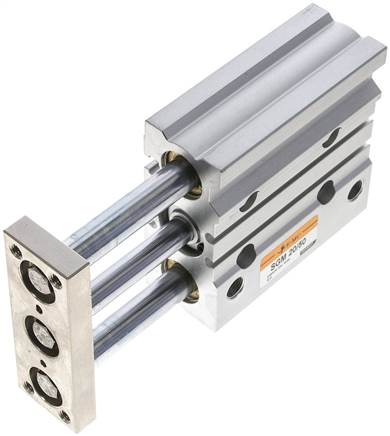

EMC
SGM 20/50
20mm bore x 50mm stroke
Guided Pneumatic Cylinder
Manufacturer Part Number SGM 20/50

£143.93 EX VAT

View Details

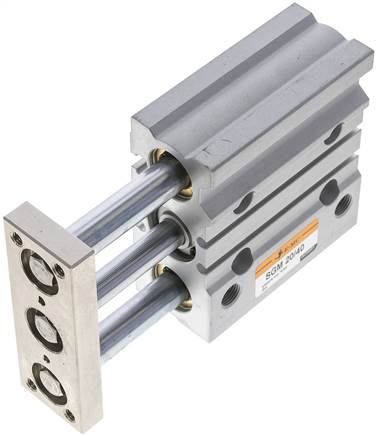

EMC
SGM 20/40
20mm bore x 40mm stroke
Guided Pneumatic Cylinder
Manufacturer Part Number SGM 20/40

£140.36 EX VAT

View Details
EMC

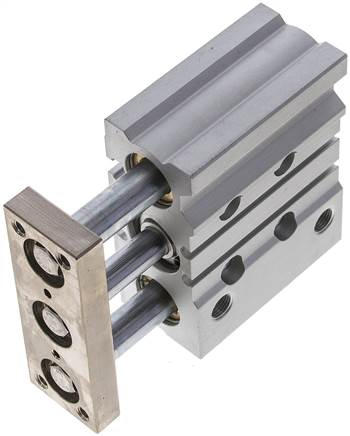

SGM 20/30
20mm bore x 30mm stroke
Guided Pneumatic Cylinder
Manufacturer Part Number SGM 20/30

£128.90 EX VAT

View Details

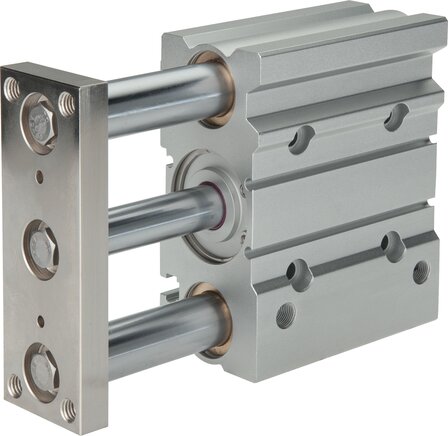

EMC
SGM 20/200
20mm bore x 200mm stroke
Guided Pneumatic Cylinder
Manufacturer Part Number SGM 20/200

£226.29 EX VAT

View Details

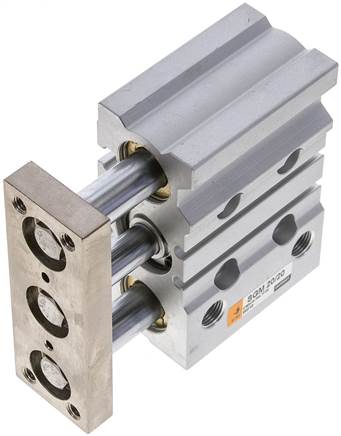

EMC
SGM 20/20
20mm bore x 20mm stroke
Guided Pneumatic Cylinder
Manufacturer Part Number SGM 20/20

£126.03 EX VAT

View Details

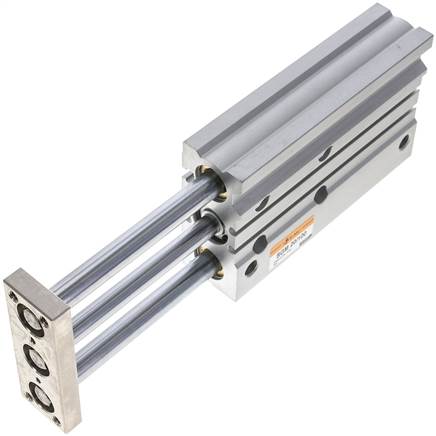

EMC
SGM 20/100
20mm bore x 100mm stroke
Guided Pneumatic Cylinder
Manufacturer Part Number SGM 20/100

£161.82 EX VAT

View Details
